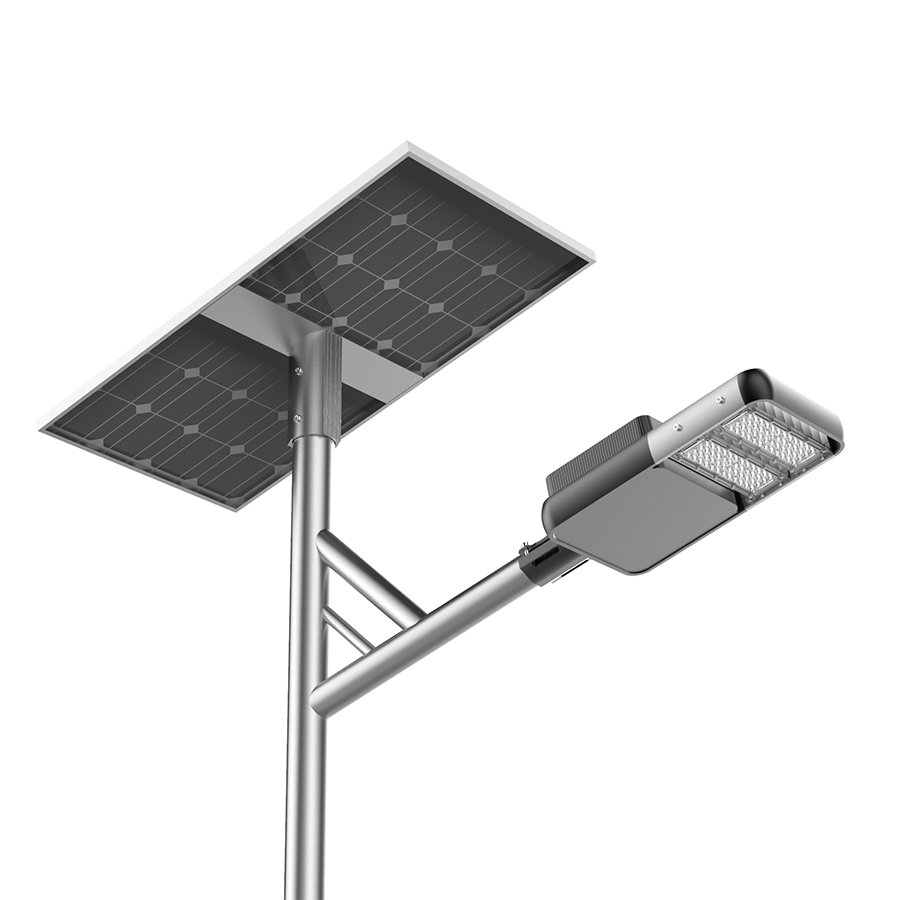

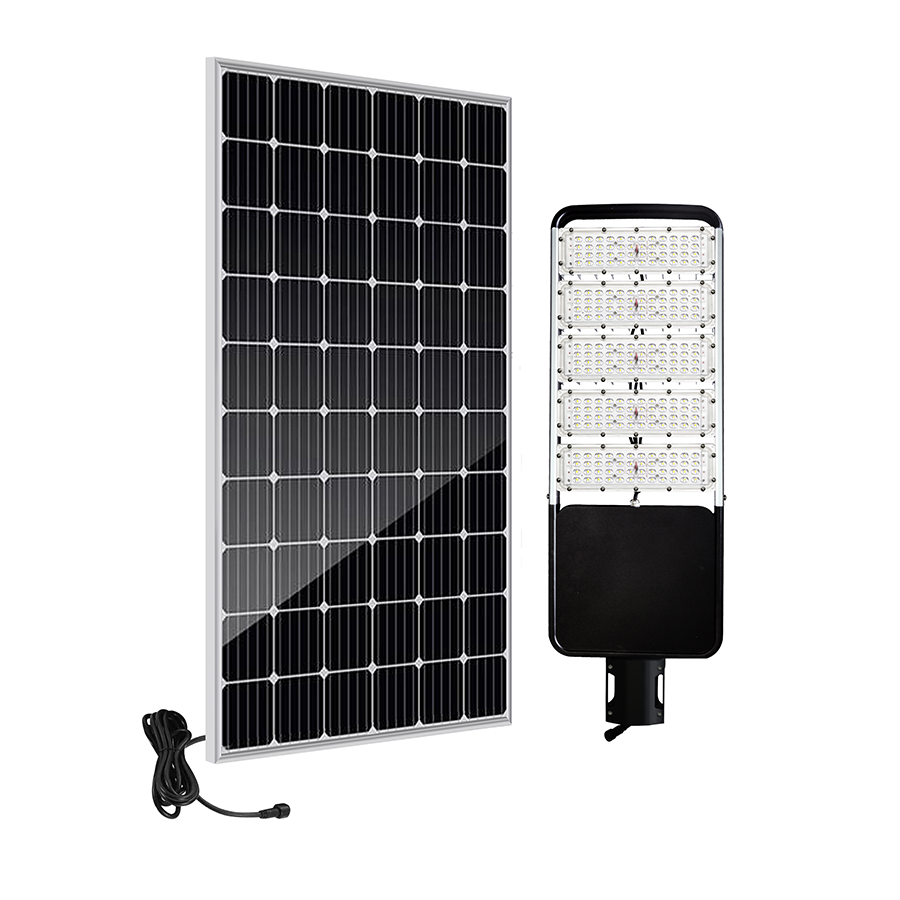

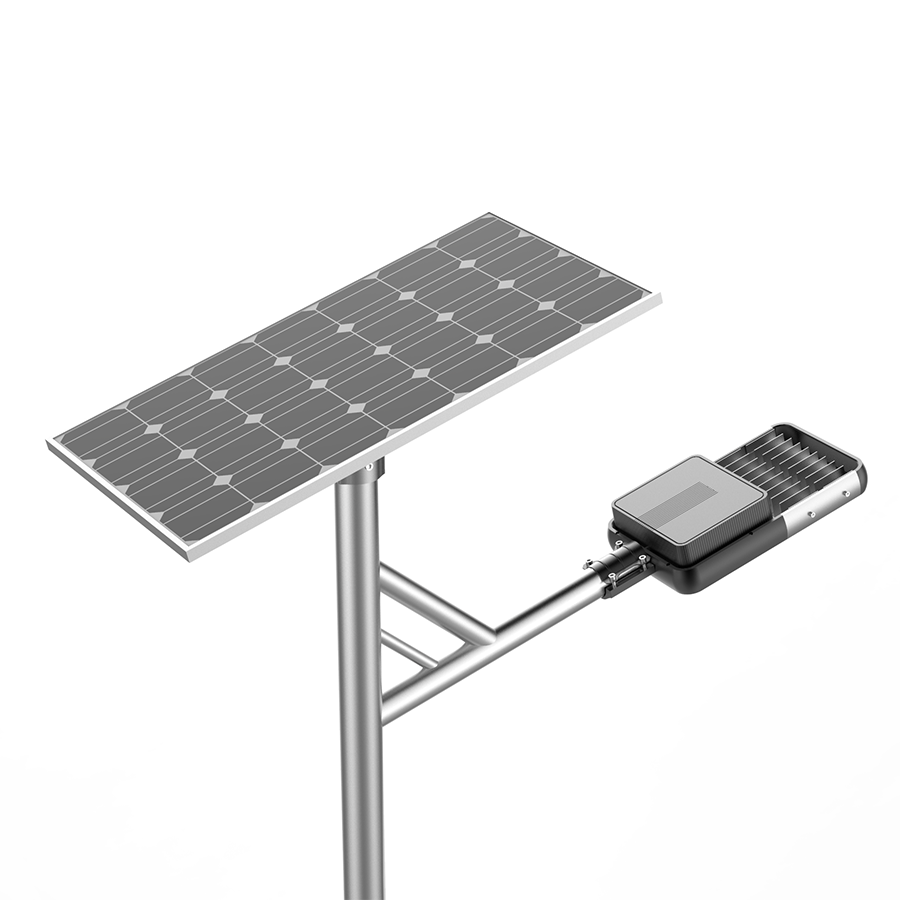

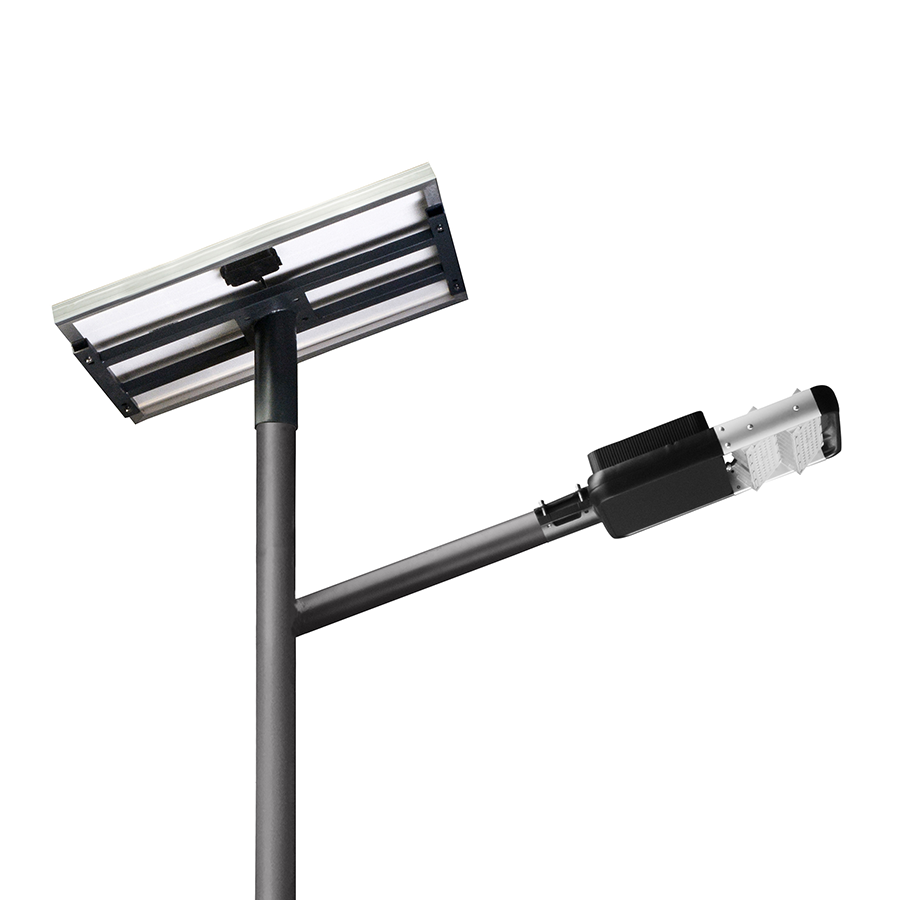

Split Solar Street Lights are the ultimate choice when it comes to high-power solar lighting. These lights are designed with a unique split concept that houses the major components separately – the solar panel, LED lamp, lighting pole, battery, and controller. This exceptional design ensures that the large-power LED lamps continue to function at high brightness levels throughout the night, thanks to the presence of high-power solar panels and lithium batteries.
Product advantages
Series No | AL-SSA1 Solar street light Series |
Power | 100W 150W 180W |
Efficacy | >180lm/W |
Working time | 7 Days |
Electrical class | Class III EU |
Battery | LiFePo4, 25.6V |
IP Rating | IP66 |
IK Rating | IK08 |
CCT | 2700K – 6500K |
CRI | Ra>70 / Ra>80(Optional) |
Working Temperature | Temp:-40℃ -+55°C, Humidity:10%-95%C |
Beam Angle | Aim Optics System, Type II, Type III… |
Mounting Option | Horizontal installation |
Warranty | 5-year warranty, Lifetime expectancy> 10 hours |
Charge controller type | MPPT |
Control | PIR Sensor(Optional), Microwave sensor(Optional), Time control(Optional), Zhaga socket (Optional) |
Aimlux has established Aim Optics System with leading optic suppliers, providing hundreds of types of optics lenses for each product. We also provide customized optics to meet specific project requirements.
Street lights fit with a wide range of applications, such as highways, expressways, roadways, avenues, walking paths, or parking lot lighting. Considering this, Aimlux provides different light distribution lenses for the A1 series street light to achieve the best lighting effect in different applications.
In terms of structure, it can be arranged according to the size of each lamp, such as 50mmx50mm, 2X2 combination or 2X6, 3X8 and other combinations suitable for different sizes of LEDs, such as 5050, 3535, 3030, etc. from different brands, lumens, CREE, Samsung, Japan Asia, etc.
Send us your road optics inquiries, and tailored solutions to enhance the success of your lighting projects.
