AL-SSA2 solar street light features an independent solar panel bracket with a 360° adjustable angle and customizable solar panel and battery capacity. Designed for easy battery replacement, it utilizes a high-capacity, deep-cycle lithium battery for extended durability. With four optional working modes and switchable RGB decorative taillights, it enhances street aesthetics while maintaining high wind resistance.
Product advantages
| Series No | AL-SSA1 Solar street light Series |
| Power | 20W, 30W,40W,50W,60W |
| Efficacy | >180lm/W |
| Working time | 2-4 Days |
| Electrical class | Class III EU |
| Battery | LiFePo4, 12.8V |
| IP Rating | IP66 |
| IK Rating | IK08 |
| CCT | 2700K – 6500K |
| CRI | Ra>70 / Ra>80(Optional) |
Working Temperature | Temp:-40℃ -+55°C, Humidity:10%-95%C |
| Beam Angle | Aim Optics System, Type II, Type III… |
| Mounting Option | Vertical mounting, Solar panels can be adjustable 360° |
| Warranty | 5-year warranty, Lifetime expectancy> 10 hours |
| Charge controller type | MPPT |
| Control | PIR Sensor(Optional), Microwave sensor(Optional), Time control(Optional), Zhaga socket (Optional) |
Aimlux has established Aim Optics System with leading optic suppliers, providing hundreds of types of optics lenses for each product. We also provide customized optics to meet specific project requirements.
Street lights fit with a wide range of applications, such as highways, expressways, roadways, avenues, walking paths, or parking lot lighting. Considering this, Aimlux provides different light distribution lenses for the A1 series street light to achieve the best lighting effect in different applications.
In terms of structure, it can be arranged according to the size of each lamp, such as 50mmx50mm, 2X2 combination or 2X6, 3X8 and other combinations suitable for different sizes of LEDs, such as 5050, 3535, 3030, etc. from different brands, lumens, CREE, Samsung, Japan Asia, etc.
Send us your road optics inquiries, and tailored solutions to enhance the success of your lighting projects.

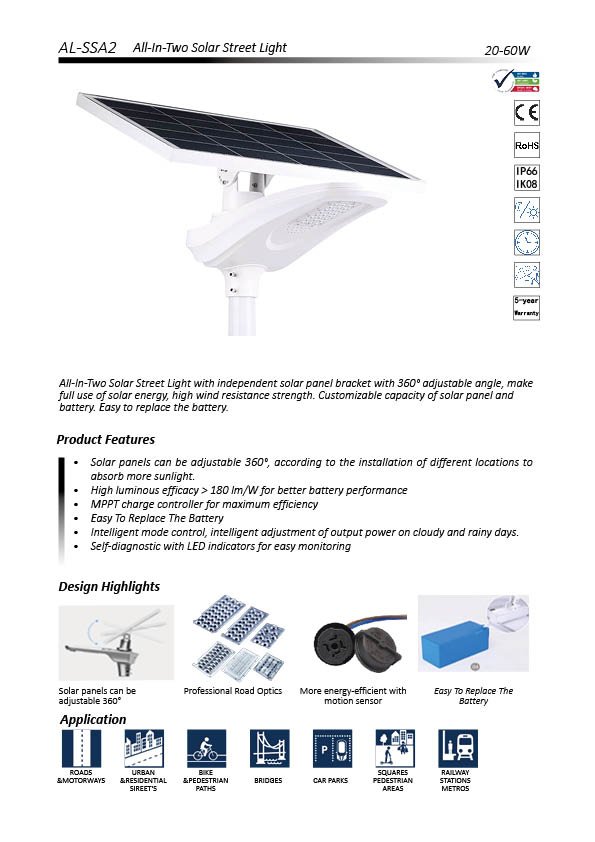

Specifications:AL-SSA2 Catalogue-Aimlux 2024
