As a reliable provider of industrial lighting solutions, Aimlux’s TG04 LED flood lights are engineered to meet the needs of complex outdoor environments, including large-scale commercial areas, industrial facilities, and public infrastructure.
Product advantages
These features ensure stable and efficient outdoor flood lighting performance in all weather conditions.
| Series No | TG04-100 Series |
| Power | 100W |
| Efficacy | 150lm/W |
| Input Voltage | 120-277VAC, 50/60Hz |
| Power Factor | >0.9, THD＜10% |
| Housing | High-pressure die-cast aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| CCT | 3000K/ 4000K/ 5000K/ 5700K/ 6500K |
| CRI | CRI＞70 Standard, CRI＞80 Optional |
| Operating Temperature | -20°C — +45°C |
| Beam Angle | 15°/30°/45°/60°/90°/120°/110×20°/ 110×40°/ 135×60°/TYPE2 / TYPE3 / TYPE4 |
| Mounting Option | Bracket Mounting |
| Warranty | 5-year warranty, Lifetime > 50,000 hours |
| Certification | CE, RoHS |
| Optional Accessories | Zhaga + PIR sensor / Zhaga + microwave motion sensor / Zhaga + Bluetooth sensor (TUYA compatible) |

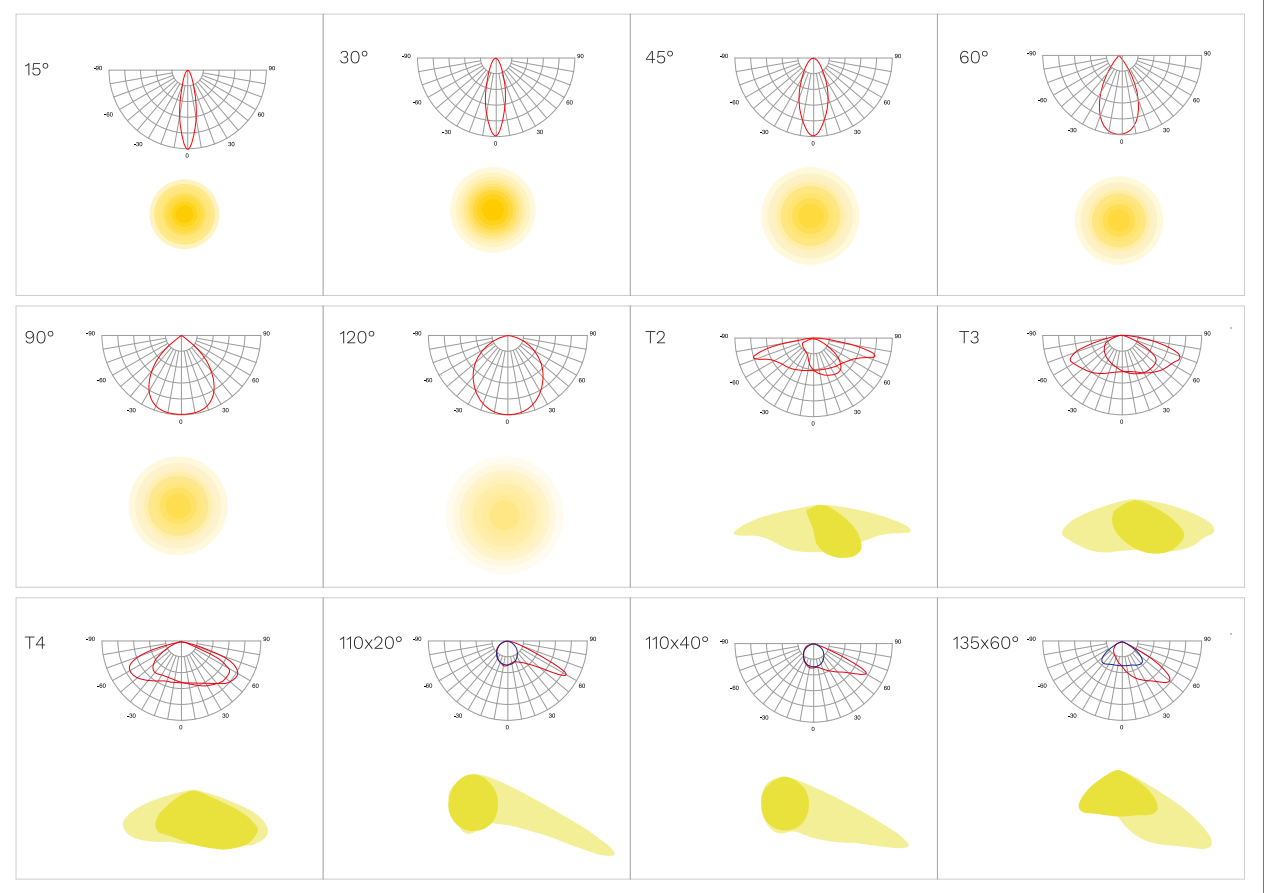

The TG04 Series gives you six symmetric and three asymmetric beam options — each one field-replaceable without swapping the fixture. Whether you’re spotlighting a 30-meter column or washing a 5,000 m² sports field, there’s a lens that puts every lumen exactly where it belongs.
| 15° | 30° | 45° | 60° | 90° | 120° | |
|---|---|---|---|---|---|---|
| Throw | Ultra-long | Long | Medium | Medium-wide | Short | Ultra-wide |
| Best for | Flagpoles, architectural accents | Columns, monuments | Facades, signage | Parking lots, courtyards | Loading docks, low ceilings | Canopies, tunnels |
| 110×20° | 110×40° | 135×60° | |
|---|---|---|---|
| IES Type | Type II | Type III | Type IV |
| Pattern | Narrow lateral, long forward | Moderate lateral spread | Wide lateral, forward-tilted |
| Best for | Roadways, pathways, perimeter fencing | Parking lots, plazas, building edges | Sports fields, large open areas |
Why asymmetric?
Symmetric beams waste light upward and sideways. Asymmetric optics push light forward and down — zero light pollution, zero spill into neighboring properties, zero glare. If your project has dark-sky compliance requirements, this is the optic that passes.
Wall-mount advantage: Asymmetric lenses eliminate the hot spot directly below the fixture that symmetric beams create, delivering even ground illumination from a single wall-mounted position.
| Your Application | Recommended Beam |
|---|---|
| Hitting a distant target | 15° or 30° symmetric |
| Washing a wall or facade | 45° or 60° symmetric |
| Wide-area coverage from above | 90° or 120° symmetric |
| Road / path from the side | 110×20° (Type II) |
| Parking lot from the edge | 110×40° (Type III) |
| Sports field, even coverage | 135×60° (Type IV) |
All lenses: polycarbonate with tempered glass protector. Field-replaceable — swap optics on site in minutes.

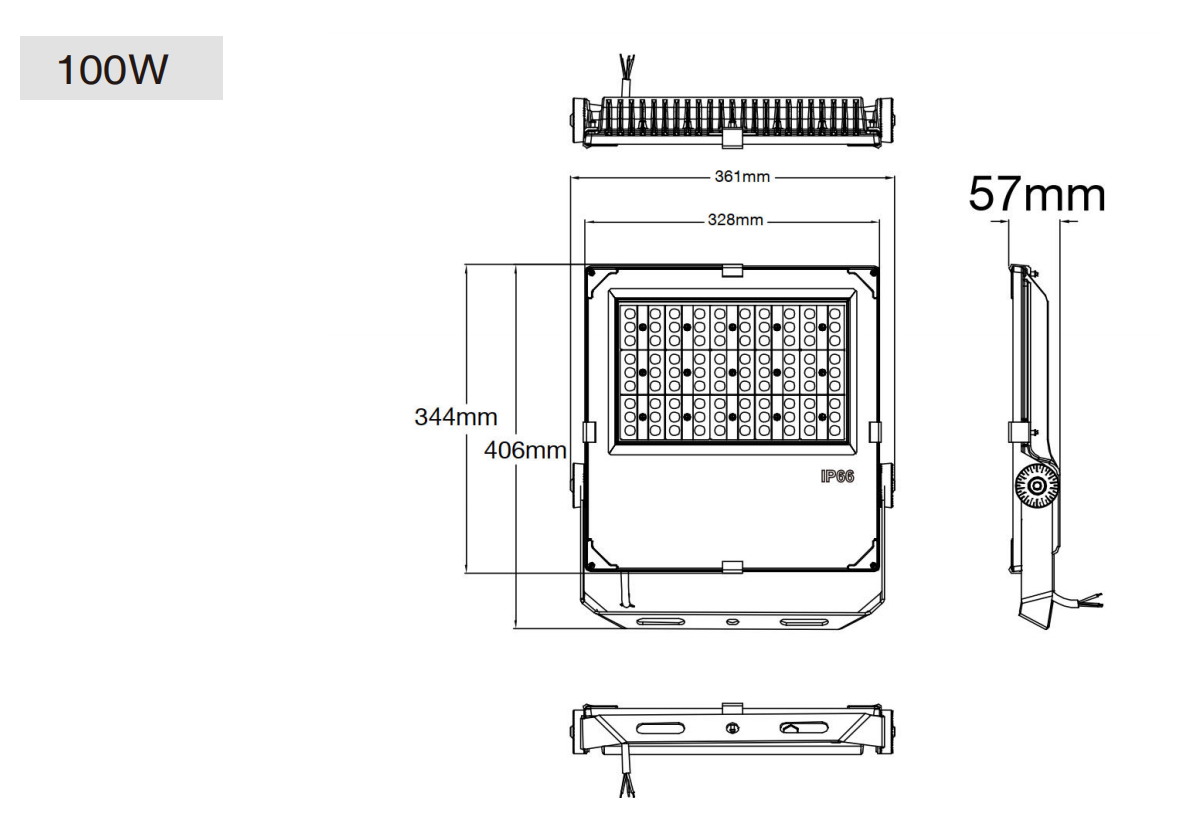

Specifications:
